ReducedDiags Class Reference

#include <ReducedDiags.H>

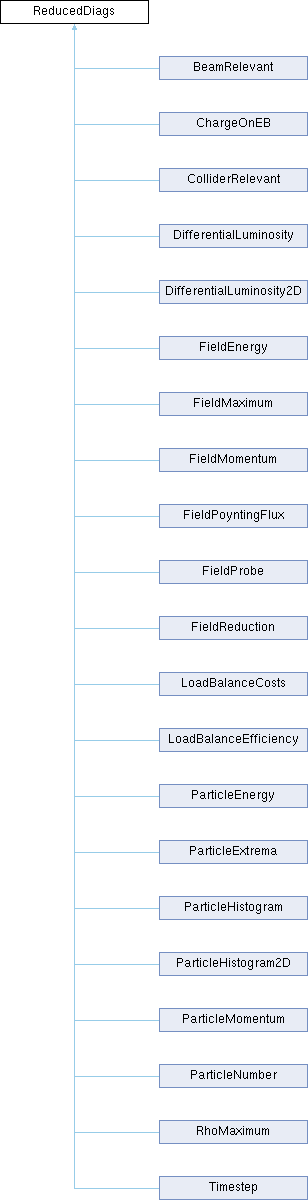

Inheritance diagram for ReducedDiags:

Public Member Functions
	ReducedDiags (const std::string &rd_name)
virtual	~ReducedDiags ()=default
	ReducedDiags (const ReducedDiags &)=default
ReducedDiags &	operator= (const ReducedDiags &)=default
	ReducedDiags (ReducedDiags &&)=default
ReducedDiags &	operator= (ReducedDiags &&)=default
virtual void	InitData ()
virtual void	LoadBalance ()
virtual void	ComputeDiags (int step)=0
virtual void	ComputeDiagsMidStep (int step)
virtual void	WriteToFile (int step) const
bool	DoDiags (int step) const
virtual void	WriteCheckpointData (std::string const &dir)
	Write out checkpoint related data.
virtual void	ReadCheckpointData (std::string const &dir)
	Read in checkpoint related data.
void	BackwardCompatibility () const

Public Attributes
std::string	m_path = "./diags/reducedfiles/"
	output path (default)
std::string	m_extension = "txt"
	output extension (default)
std::string	m_rd_name
	diags name
utils::parser::IntervalsParser	m_intervals
	output intervals
bool	m_write_header = false
	check if header should be written
std::string	m_sep = " "
	separator in the output file
int	m_precision = 14
	precision for data in the output file
std::vector< amrex::Real >	m_data
	output data

Detailed Description

Base class for reduced diagnostics. Each type of reduced diagnostics is implemented in a derived class, and must override the (pure virtual) function ComputeDiags.

Constructor & Destructor Documentation

ReducedDiags() [1/3]

ReducedDiags::ReducedDiags

(

const std::string &

rd_name

)

constructor

Parameters

[in]

rd_name

reduced diags names

~ReducedDiags()

virtual ReducedDiags::~ReducedDiags ( )

virtualdefault

Virtual destructor for polymorphism

ReducedDiags() [2/3]

ReducedDiags::ReducedDiags ( const ReducedDiags & )

default

ReducedDiags() [3/3]

ReducedDiags::ReducedDiags ( ReducedDiags && )

default

Member Function Documentation

BackwardCompatibility()

void ReducedDiags::BackwardCompatibility

(

)

const

This function queries deprecated input parameters and aborts the run if one of them is specified.

ComputeDiags()

virtual void ReducedDiags::ComputeDiags ( int step )

pure virtual

function to compute diags

Parameters

[in]

step

current time step

Implemented in BeamRelevant, ChargeOnEB, ColliderRelevant, DifferentialLuminosity2D, DifferentialLuminosity, FieldEnergy, FieldMaximum, FieldMomentum, FieldPoyntingFlux, FieldProbe, FieldReduction, LoadBalanceCosts, LoadBalanceEfficiency, ParticleEnergy, ParticleExtrema, ParticleHistogram2D, ParticleHistogram, ParticleMomentum, ParticleNumber, RhoMaximum, and Timestep.

ComputeDiagsMidStep()

void ReducedDiags::ComputeDiagsMidStep ( int step )

virtual

function to compute diags at the mid step time level

Parameters

[in]

step

current time step

Reimplemented in FieldPoyntingFlux.

DoDiags()

bool ReducedDiags::DoDiags ( int step ) const

inlinenodiscard

Check if diag should be done

InitData()

void ReducedDiags::InitData ( )

virtual

function to initialize data after amr levels are initialized.

Reimplemented in FieldProbe.

LoadBalance()

void ReducedDiags::LoadBalance ( )

virtual

Redistribute parallel data structures during load balance

Reimplemented in FieldProbe.

operator=() [1/2]

ReducedDiags & ReducedDiags::operator= ( const ReducedDiags & )

default

operator=() [2/2]

ReducedDiags & ReducedDiags::operator= ( ReducedDiags && )

default

ReadCheckpointData()

void ReducedDiags::ReadCheckpointData ( std::string const & dir )

virtual

Read in checkpoint related data.

Parameters

[in]

dir

Directory where checkpoint data was written

Reimplemented in FieldPoyntingFlux.

WriteCheckpointData()

void ReducedDiags::WriteCheckpointData ( std::string const & dir )

virtual

Write out checkpoint related data.

Parameters

[in]

dir

Directory where checkpoint data is written

Reimplemented in FieldPoyntingFlux.

WriteToFile()

void ReducedDiags::WriteToFile ( int step ) const

virtual

write to file function

Parameters

[in]

step

current time step

Reimplemented in DifferentialLuminosity2D, FieldProbe, LoadBalanceCosts, and ParticleHistogram2D.

Member Data Documentation

m_data

std::vector<amrex::Real> ReducedDiags::m_data

output data

m_extension

std::string ReducedDiags::m_extension = "txt"

output extension (default)

m_intervals

utils::parser::IntervalsParser ReducedDiags::m_intervals

output intervals

m_path

std::string ReducedDiags::m_path = "./diags/reducedfiles/"

output path (default)

m_precision

int ReducedDiags::m_precision = 14

precision for data in the output file

m_rd_name

std::string ReducedDiags::m_rd_name

diags name

m_sep

std::string ReducedDiags::m_sep = " "

separator in the output file

m_write_header

bool ReducedDiags::m_write_header = false

check if header should be written

---

The documentation for this class was generated from the following files:

• /home/docs/checkouts/readthedocs.org/user_builds/warpx/checkouts/6102/Source/Diagnostics/ReducedDiags/ReducedDiags.H
• /home/docs/checkouts/readthedocs.org/user_builds/warpx/checkouts/6102/Source/Diagnostics/ReducedDiags/ReducedDiags.cpp
